What Is an Embedded GUI Rendering Engine?

An embedded GUI rendering engine is the software component responsible for converting widget properties — position, size, colour, transparency, animation state — into pixel data written to the display framebuffer. Every frame, the rendering engine must decide which regions of the screen have changed, compute the correct pixel values for those regions (accounting for layering, alpha blending, clipping, and transformations), and transfer the result to the display controller.

On embedded hardware, this must happen within a fixed frame deadline — typically 16.7 ms for 60 fps. There is no excess CPU headroom. A poorly designed rendering engine burns every CPU cycle on pixel operations, leaving nothing for application logic, communication stacks, or RTOS tasks.

Sparklet's GDI layer solves this with three complementary strategies: a dirty-region algorithm that skips unchanged screen areas entirely; hardware accelerator routing that offloads pixel operations from the CPU to DMA2D, D/AVE2D, PXP, or Mali; and partial buffer rendering that eliminates the need for a second full-screen framebuffer in RAM-constrained designs. The result is a rendering engine that scales from a 16 KB RAM bare-metal MCU to a Linux MPU running OpenGL ES — with the same widget API throughout. See all Sparklet embedded GUI features →

Three Rendering Modes — One Widget API

Software Rendering

Software rendering is Sparklet's CPU-only pixel pipeline for MCUs without a hardware GPU. It handles fill, blit, alpha blend, rotate, scale, and font rasterisation entirely in optimised C code. Two mechanisms keep it practical on constrained hardware. Dirty-region rendering skips unchanged screen areas — on a typical industrial HMI where most of the display is a static background, 80–95% of pixels are never touched per frame. Partial buffer mode renders to a small scan-line buffer (as few as 1/8 of screen height) and flushes progressive bands via DMA, saving 200–400 KB RAM on QVGA/WVGA displays. Software rendering makes embedded UI feasible on entry-level MCUs such as the STM32F4 or Renesas RA6M3 without any GPU. How dirty-region and partial buffer rendering work →

2.5D HW Accelerated

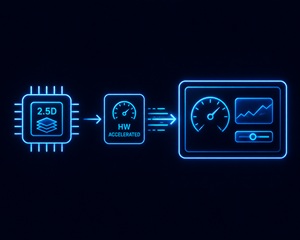

On MCUs and crossover MCUs with a 2D hardware accelerator, Sparklet's GDI layer routes rendering operations to the accelerator — DMA2D (STM32 F4/H7/U5), D/AVE2D (Renesas RH850/RA series), or PXP (NXP i.MX RT1170). The widget layer and application code are completely unaware of which execution path is used — the GDI API is identical. A fill operation that takes 800 µs in software completes in under 100 µs with DMA2D, freeing the CPU for application work. On an STM32H7 at 480 MHz with DMA2D enabled, Sparklet achieves 60 fps at WVGA (800×480) for typical HMI content. D/AVE2D on Renesas additionally supports anti-aliased line, arc, and polygon rendering — enabling smooth dial gauges and vector-style graphics without GPU overhead. PXP on NXP handles scaling, rotation, colour space conversion, and alpha compositing in a single DMA pass. Hardware acceleration deep dive →

3D OpenGL ES / Vulkan

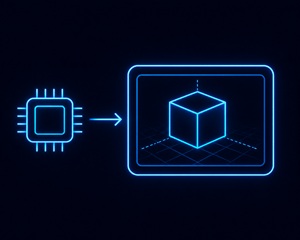

On MPUs running embedded Linux — NXP i.MX 8, Renesas RA8D1 with Mali GPU — Sparklet extends its rendering engine with a full 3D pipeline. The 3DWidget and 3DView components integrate into the same screen layout as standard 2D widgets. A 3D model occupies a rectangular area of the screen; outside that area, normal 2D GDI rendering continues unchanged. The 3D pipeline uses OpenGL ES 2.0/3.0 or Vulkan depending on the platform GPU driver. 3D models in .obj or .fbx format are imported via Flint UI Designer — no OpenGL ES or Vulkan programming knowledge required. Typical use cases: photorealistic vehicle body models in automotive clusters; rotating product models in industrial maintenance interfaces; animated 3D icons in consumer electronics. Explore Sparklet 3D graphics →

Frame Budget Management: What the Rendering Engine Does Each Frame

Achieving consistent frame rates on embedded hardware requires predictable frame budget management. Sparklet's EXEC layer drives the frame scheduler, and within each frame the work is sequenced in a fixed priority order:

Input processing — touch events and encoder inputs from interrupt-driven ring buffers are drained and dispatched to the widget tree.
State machine execution — the RS_MIN HSM engine evaluates transitions triggered by input events or timer expiry and updates widget properties accordingly.
Dirty region computation — all widgets whose properties changed during state machine execution mark their bounding rectangles dirty; the GDI merges these into a minimal repaint set.
Rendering — the GDI renders only the dirty region, routing to software pipeline or hardware accelerator as configured for the target platform.
Framebuffer flush — the rendered pixels are transferred to the display controller via DMA (non-blocking) or synchronous LCD write depending on the HAL implementation.

This sequencing ensures that input events are always processed before rendering, preventing the perceptible input lag that plagues rendering engines that batch input with the display refresh cycle. In full-buffer mode the flush step is a single DMA transfer that runs concurrently with the next frame's state machine processing. In partial-buffer mode, rendering of the next scan-line band is pipelined with the DMA flush of the current band — the CPU is never idle waiting for a transfer to complete.

Sparklet provides a frame timing diagnostic API that reports per-frame execution time breakdown by pipeline stage — useful for identifying whether frame budget overruns originate in state machine logic, dirty region size, or rendering operations. Real-time rendering and partial buffer mode →

Platform	Accelerator	Rendering Mode	Typical FPS (WVGA)	Min RAM (framebuffer)
STM32H7	DMA2D (Chrom-ART)	2.5D HW Accelerated	60 fps	~150 KB (partial buf)
STM32F4	None	2D Software	30 fps (QVGA)	~75 KB (partial buf)
Renesas RH850	D/AVE2D (DRW)	2.5D HW Accelerated	60 fps	~150 KB (partial buf)
Renesas RA8D1	Mali-Limav GPU	3D OpenGL ES	60+ fps	Full framebuffer
NXP i.MX RT1170	PXP	2.5D HW Accelerated	60 fps	~150 KB (partial buf)
NXP i.MX 8	Mali GPU	3D OpenGL ES / Vulkan	60+ fps	Full framebuffer
Any MCU (no GPU)	None	2D Software	30–60 fps (screen-dependent)	As low as 16 KB

GDI Layer Capabilities

Four core techniques that make Sparklet's rendering engine efficient on constrained embedded hardware.

Dirty-Region Algorithm

80–95% of pixel operations skipped per frame on typical HMI screens — unchanged areas are never redrawn.

Partial Buffer Mode

Render to a scan-line strip and flush via DMA progressively. Saves 200–400 KB RAM on WVGA displays.

Accelerator Routing

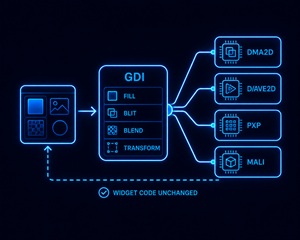

GDI routes fill, blit, blend, and transform to DMA2D, D/AVE2D, PXP, or Mali — widget code unchanged.

Alpha Blending & Clipping

Per-pixel and per-widget alpha blending, rectangular clipping, and layered compositing supported in all rendering modes.

Embedded GUI Rendering Engine — Frequently Asked Questions

How does dirty-region rendering work in Sparklet?

Each Sparklet widget maintains a dirty flag. When a widget property changes — a value update, an animation frame advance, a state change — the widget sets its dirty flag and marks its bounding rectangle as requiring repaint. Before each render frame, the GDI layer collects all dirty bounding rectangles, merges overlapping ones into a minimal union region, and renders only that region. Unchanged areas of the screen are not touched. On typical industrial HMI screens where most of the display is static background, this reduces per-frame pixel operations by 80–95% compared to full-screen redraw.

What hardware accelerators does Sparklet's rendering engine support?

How does Sparklet achieve 60 fps on STM32H7?

What is partial buffer rendering in embedded GUI?

How does 3D rendering work in Sparklet's embedded GUI?

Embedded GUI Rendering Engine — From Widget State to Pixels, Efficiently
