Embedded GUI Animation Designer

Create fluid, professional animations for your embedded display — directly in Flint's visual timeline editor. Keyframe curves, state-triggered transitions, and sequenced animation chains. No animation code to write — Sparklet's execution engine handles everything at runtime.

Get Free Evaluation Explore Flint Designer

What Is an Embedded GUI Animation Designer?

An embedded GUI animation designer is a visual tool that lets developers and UI designers create smooth widget animations — position sweeps, fade effects, colour transitions, progress bar fills — for embedded displays, without writing animation interpolation code by hand. Flint UI Designer, Sparklet's PC-based WYSIWYG design tool, includes a fully integrated animation designer with a keyframe timeline, easing curve editor, state-triggered animation hooks, and sequenced animation chains. The animations are compiled into compact C tables and executed at runtime by Sparklet's execution engine, with zero per-frame calculation required in application code.

Embedded GUI animations serve both functional and usability purposes. A smooth needle sweep on instrument cluster startup signals system readiness. A fade-in on screen navigation gives the user a sense of hierarchy and direction. A spinning loader on a long operation communicates that the system is working, not frozen. In competitive embedded product categories — automotive clusters, wearables, home appliances, medical monitors — animation quality is a direct proxy for product quality in the customer's perception.

Flint's animation designer removes the barrier that previously forced embedded teams to choose between animation quality and development time. With the Flint UI Designer, animation is designed visually and executed automatically by Sparklet's widget engine.

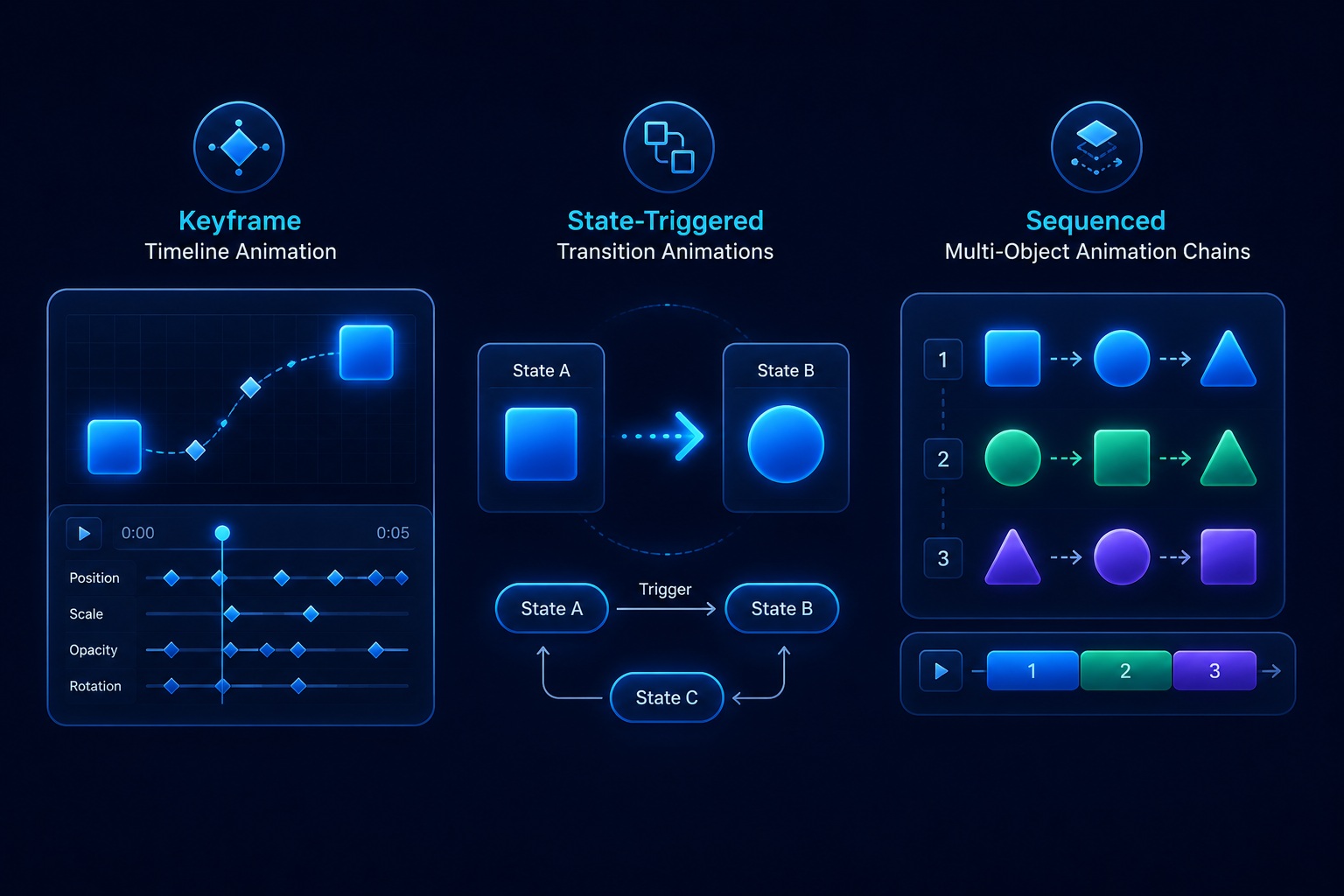

Three Animation Types in Flint's Animation Designer

Flint supports three complementary animation approaches suited to different interaction patterns in an embedded GUI.

Keyframe Timeline Animation

The keyframe timeline editor works similarly to animation tools in the mobile and web domain — but outputs to embedded C, not JavaScript or CSS. For any widget property (position X/Y, width, height, opacity, rotation angle, colour, or numeric value), you place keyframes at time positions on the timeline and define the value at each keyframe. Flint interpolates between keyframes using the easing curve assigned to each segment: linear, ease-in, ease-out, ease-in-out, or a custom cubic Bezier.

Once designed, the animation previews in Flint's live simulator panel. On export, the animation compiles into a compact C animation table — a fixed array of keyframe descriptors and timing data. At runtime, Sparklet's execution engine walks the table, interpolating property values each frame. No heap allocation, no malloc, no per-frame application callback required.

  • Gauge needle startup sweeps and settles
  • Progress bar fill sequences with easing
  • Icon scale-and-fade entrance effects
  • Numeric counter roll-up on data dashboards

Four Animation Pattern Categories

Classify every animation in your embedded GUI into one of these four functional roles before designing it in Flint.
Entry Animation

Entry Animation

Plays when a widget or screen becomes visible. Typically a fade-in, slide-in, or scale-up. Assigned to state machine entry events in Flint; Sparklet plays them automatically on every relevant state transition with zero application code involvement.

Exit Animation

Exit Animation

Plays when a widget or screen is about to become hidden. A fade-out, slide-out, or shrink-and-disappear sequence. Runs before the state machine completes the transition, ensuring the leaving state is visually dismissed before the arriving state appears.

Loop Animation

Loop Animation

A continuously repeating animation — a BusyIndicator spinning, a status LED pulsing, an idle screen clock hand ticking. Defined with a loop flag in Flint's timeline editor. Runs indefinitely until cancelled by a state machine transition or an explicit application API call.

State-Transition Animation

State-Transition Animation

A one-shot animation bound to a specific transition in the state machine diagram. Plays exactly once when that transition fires, covering effects like a button press ripple, a confirmation check-mark draw, or a value-update highlight flash. Defined in Flint's animation panel alongside the transition arrow.

Flint Animation Designer vs Manual Animation Code

CapabilityManual C CodeFlint Animation Designer
Easing curvesCustom cubic Bezier — implement from scratchBuilt-in presets + cubic Bezier editor
Floating-point arithmeticDeveloper avoids on Cortex-M0 — complexPre-calculated fixed-point tables at design time
Per-frame timer callbackRequired — developer writes and maintainsNone — Sparklet engine manages all frames
Multi-object sequencingManual state flags and delay countersVisual sequence chain — no code
State-triggered animationsManual integration with UI state flagsAutomatic via state machine — fully declarative
RAM usage per animationVaries — depends on developer approachFixed small context struct; Flash-stored tables
Preview before hardware flashFlash and test device each iterationInstant preview in Flint PC Simulator
Iteration speedMinutes per easing changeSeconds — adjust and preview live

Frequently Asked Questions

With Flint UI Designer, you add animations to an embedded GUI by opening the animation timeline for a widget, placing keyframes at desired time positions, setting the property value at each keyframe, and selecting an easing curve. Flint compiles the animation to a C table that Sparklet's execution engine runs at runtime. No interpolation code or timer callbacks are written in application code.

Try Flint's Animation Designer Free

Download the Sparklet evaluation package — includes Flint UI Designer with the full animation editor, PC simulator, and sample projects with animated screens. No hardware required to get started.
