Introduction

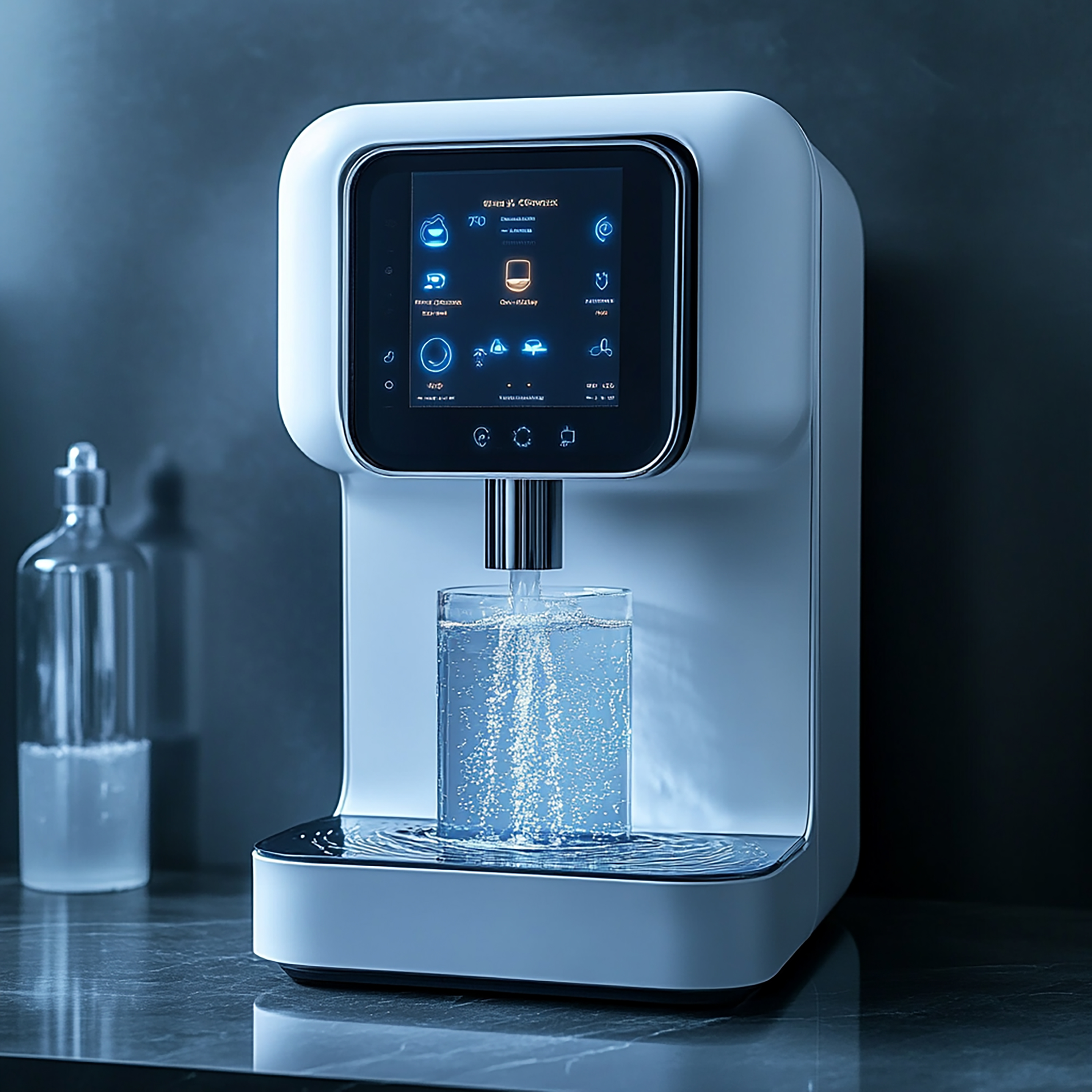

In the rapidly expanding smart appliance segment, consumers expect devices that combine real-time performance with an intuitive digital interface. A leading home appliance manufacturer approached Embien Technologies to design a Smart Water Purifier GUI that provides clear water-quality insights, maintenance reminders, and system health indicators — all within a sleek, embedded display environment.

The project targeted the Renesas RA8D1 platform, powered by the Arm® Cortex-M85 core, known for its high performance and integrated graphics acceleration. The main objective was to deliver a visually rich yet resource-efficient GUI that enhances user interaction while maintaining low power consumption and fast responsiveness.

Challenge

While the RA8D1 offered robust graphics support through its 2D acceleration engine and MIPI-DSI interface, the project demanded careful optimization. The GUI needed to display real-time sensor data such as TDS levels, tank water volume, supply status, and purifier health, along with interactive menus for service settings and maintenance reminders.

The primary challenges included:

  1. Managing real-time data updates without UI lag.
  2. Optimizing performance under limited flash and RAM resources.
  3. Achieving smooth graphical rendering with minimal CPU overhead.
  4. Supporting RFID-based service access and customizable settings within a single interface.
  5. Ensuring stable display behavior across variable voltage and environmental conditions.

Off-the-shelf GUI frameworks were too heavy for this embedded target or lacked customization flexibility. A lightweight, hardware-aware graphics engine was essential to meet performance and memory goals.

Solution

Embien deployed its proprietary Sparklet Embedded Graphics Framework, purpose-built for resource-constrained MCU environments like the Renesas RA8D1. Sparklet’s architecture leverages fixed-point rendering, compressed asset management, and selective refresh updates to minimize processing and memory use while maintaining high visual fidelity.

The design was crafted using Flint, Embien’s powerful visual GUI design tool. Flint enabled rapid prototyping of the main and settings screens — including graphical indicators, animated water levels, and icon-based system statuses — all exported directly into Sparklet’s runtime format for seamless integration into the firmware.

Key Sparklet optimizations included:

  1. Hardware-accelerated rendering using RA8D1’s 2D graphics engine.
  2. Dirty rectangle tracking to refresh only changed screen regions.
  3. Layered widget composition for icons, text, and bars with minimal redraw cost.
  4. RFID-based admin access integrated into the GUI logic layer.
  5. Memory optimization through asset compression and dynamic resource loading.

    6. These techniques enabled fluid transitions, low CPU utilization, and quick responsiveness to real-time sensor changes without compromising graphical quality.

    Performance & Results

    Extensive validation on the target hardware demonstrated exceptional efficiency. The Sparklet-powered GUI achieved:

    1. Consistent 60 FPS performance during active display updates.
    2. Flash savings of over 35% through optimized asset handling.
    3. Low CPU load (<40%), leaving ample headroom for sensor processing.
    4. Smooth transitions and instant data refresh, even under full feature load.
    5. Stable operation across 18V–24V voltage conditions, validated through endurance testing.

      6. The result was a responsive, user-friendly Smart Water Purifier interface that allowed end users to easily monitor purification progress, tank level, and water quality, while service personnel could securely access diagnostics and maintenance tools.

      Conclusion

      By leveraging Sparklet on the Renesas RA8D1 platform, Embien Technologies successfully delivered a high-performance, resource-optimized GUI tailored for smart appliance applications. The project demonstrated how Sparklet’s lightweight rendering pipeline and hardware-aware optimization can transform user interfaces even in constrained embedded systems.

      Today, this Smart Water Purifier solution is being deployed across multiple product lines, reaffirming Sparklet’s position as a leading embedded graphics framework for next-generation smart home devices.
